Check valve 60 Horizontal 3/8" – 2"

€11,94

(€14,45 Incl. btw)

All products are added to your cart.

Home Check valve 60 Horizontal 3/8" – 2"

Back to overviewBack

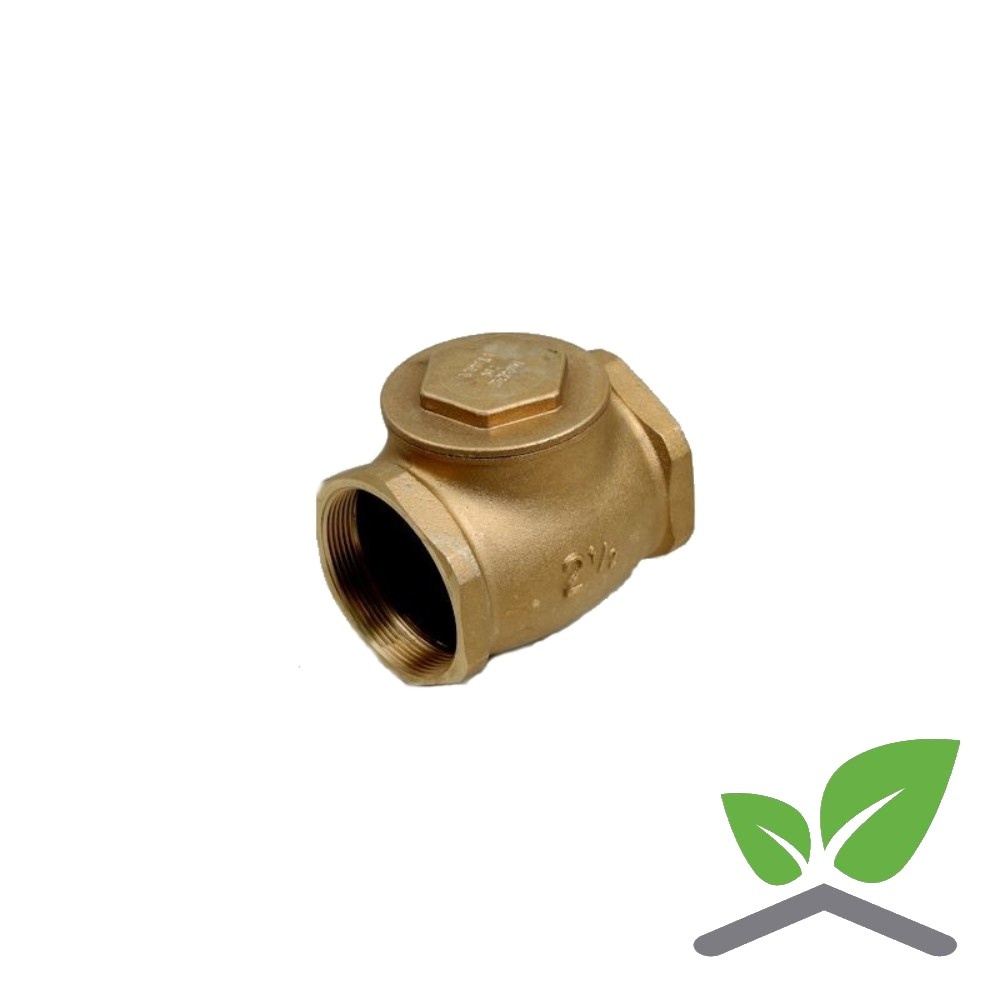

Check valve 60 Horizontal 3/8" – 2"

Delivery time 3 - 7 days

Check valve 60 Horizontal 3/8" – 2"-1

Image 1 / 1

Check valve 60 Horizontal 3/8" – 2"

Check valve 60 Horizontal 3/8" – 2"

Delivery time 3 - 7 days

Check valve 60 Horizontal 3/8" – 2"

€11,94

(€14,45 Incl. tax)

Make a choice:

- +

Ordered before , delivered tomorrow! You got: 03:39 hours

Not found what you were looking for? Contact us!

Not found what you were looking for? Contact us!

Description
Check valve 60 Horizontal BSP female
- Brass housing.
- Brass plug without spring / unloaded valve
- NBR sealing.
- Temperature range 0 gr. C + 90 gr. C
- Installation only horizontally
Inner thread installation length (mm) height (mm) Workload (bar)

3/8'' 43 50 12

1/2" 43 50 12

3/4" 52 59,5 12

1" 62 68 12

1 1/4" 72 77 10

1 1/2" 81 88 10

2" 94 100 10
Add your review
0 stars based on 0 reviews

Description

Check valve 60 Horizontal BSP female

Brass housing.
Brass plug without spring / unloaded valve
NBR sealing.
Temperature range 0 gr. C + 90 gr. C
Installation only horizontally

Inner thread	installation length (mm)	height (mm)	Workload (bar)
3/8''	43	50	12
1/2"	43	50	12
3/4"	52	59,5	12
1"	62	68	12
1 1/4"	72	77	10
1 1/2"	81	88	10
2"	94	100	10
