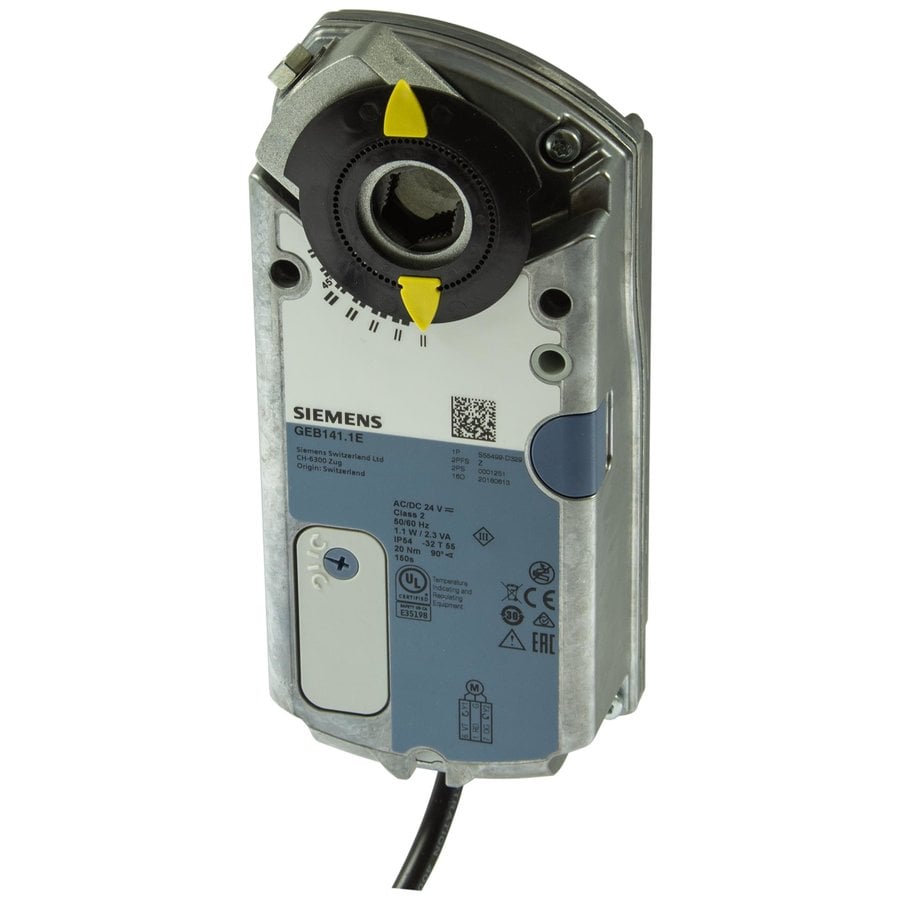

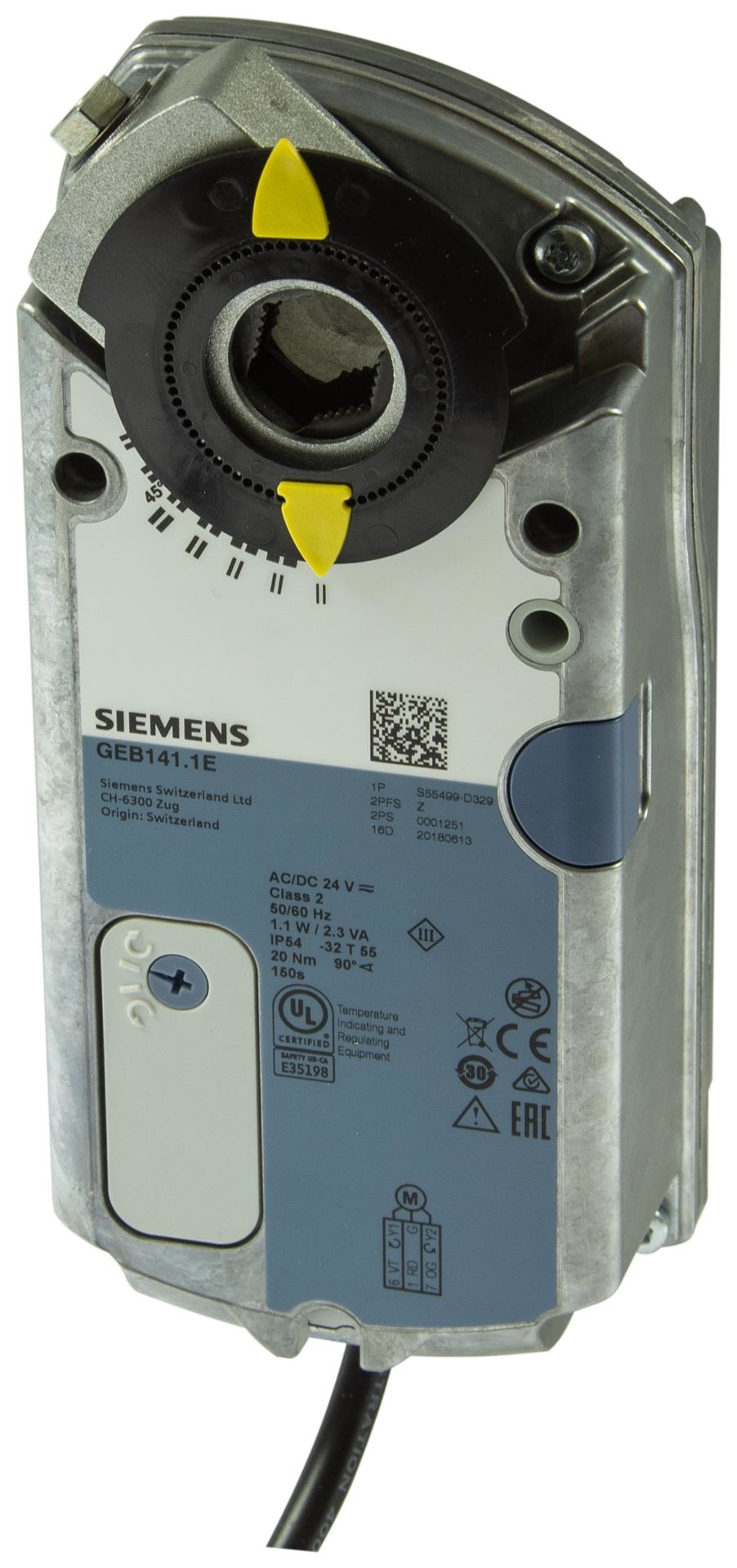

SIEMENS GEB..1E Rotary air damper actuator 20 Nm, without spring return
GEB141.1E
€217,50
(€263,18 Incl. tax)
SIEMENS GEB..1E Rotary air damper actuator 20 Nm, without spring return
Image 1 / 1
€217,50
(€263,18 Incl. tax)
-
Description
SIEMENS GEB..1E Rotary air damper actuator 20 Nm, without spring return
Actuator for Siemens VBF21.125, VBF21.150 and Sauter 32F.
- With self-centering shaft adapter for shaft dia. 8...20.5 mm, square 8...14.5 mm, min. shaft length 20 mm
- With position indication and adjustable mechanical limit stop
- Button for disengaging the gear train to enable manual control
- With housing made of die-cast aluminium and 0.9 m connecting cable
Torque 20 NmAir damper area 4 m²Angular rotation 90°Positioning time 150 sDegree of protection IP54Ambient temperature, operation -32…55 °CAvailable types:
Motor type Motor voltage GEB341.1E AC 100 - 240 V
GEB141.1E AC 24 / DC 24-48
GEB161.1E 24V - 0...10V
NOTE
When assembling a new Siemens VBF or Sauter 32F with a GEB servomotor, an adapter set must always be ordered. See product Siemens GEB...1E Adapter set. -
Siemens VBF21 Three-port slipper valves, PN6, flanged N4241
Siemens Three-port slipper valves, PN6, flanged VBF21 PN6 N4241 DN 125-150 kvs 550 - 820
