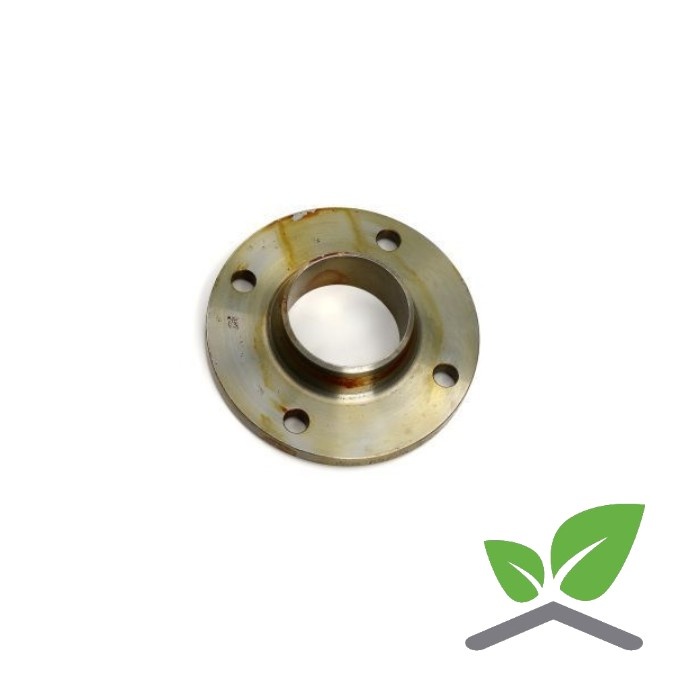

Welding neck flange DIN 2631 PN 6 DN 20 mm up to 300 mm

Delivery time On request

Image 1 / 1

Delivery time On request

€8,45

Make a choice:

- +

Ordered before , delivered tomorrow! You got: 03:39 hours

Description

Prices and delivery times on request

Nominal diamter	Nominal pipe size	Pitch circle diameter	Thread holes	Pressure	Standard	Quality
DN 20	3/4" (26,9 mm)	65 mm	4 x 11 mm Ø	PN 6	DIN 2631	ST.37.0
DN 25	1" (33,7 mm)	75 mm	4 x 11 mm Ø	PN 6	DIN 2631	ST.37.0
DN 32	1.1/4" (42,4 mm)	90 mm	4 x 14 mm Ø	PN 6	DIN 2631	ST.37.0
DN 40	1.1/2" (48,3 mm)	100 mm	4 x 14 mm Ø	PN 6	DIN 2631	ST.37.0
DN 50	2" (60,3 mm)	110 mm	4 x 14 mm Ø	PN 6	DIN 2631	ST.37.0
DN 65	76,1 mm	130 mm	4 x 14 mm Ø	PN 6	DIN 2631	ST.37.0
DN 80	88,9 mm	150 mm	4 x 18 mm Ø	PN 6	DIN 2631	ST.37.0
DN 100	108 mm	170 mm	4 x 18 mm Ø	PN 6	DIN 2631	ST.37.0
DN 100	114,3 mm	170 mm	4 x 18 mm Ø	PN 6	DIN 2631	ST.37.0
DN 125	133 mm	200 mm	8 x 18 mm Ø	PN 6	DIN 2631	ST.37.0
DN 125	139,7 mm	200 mm	8 x 18 mm Ø	PN 6	DIN 2631	ST.37.0
DN 150	159 mm	225 mm	8 x 18 mm Ø	PN 6	DIN 2631	ST.37.0
DN 150	168,3 mm	225 mm	8 x 18 mm Ø	PN 6	DIN 2631	ST.37.0
DN 200	219,1 mm	280 mm	8 x 18 mm Ø	PN 6	DIN 2631	ST.37.0
DN 250	273 mm	335 mm	12 x 18 mm Ø	PN 6	DIN 2631	ST.37.0
DN 300	323,9 mm	335 mm	12 x 22 mm Ø	PN 6	DIN 2631	ST.37.0

Prices and delivery times on request

Nominal diamter	Nominal pipe size	Pitch circle diameter	Thread holes	Pressure	Standard	Quality
DN 20	3/4" (26,9 mm)	65 mm	4 x 11 mm Ø	PN 6	DIN 2631	ST.37.0
DN 25	1" (33,7 mm)	75 mm	4 x 11 mm Ø	PN 6	DIN 2631	ST.37.0
DN 32	1.1/4" (42,4 mm)	90 mm	4 x 14 mm Ø	PN 6	DIN 2631	ST.37.0
DN 40	1.1/2" (48,3 mm)	100 mm	4 x 14 mm Ø	PN 6	DIN 2631	ST.37.0
DN 50	2" (60,3 mm)	110 mm	4 x 14 mm Ø	PN 6	DIN 2631	ST.37.0
DN 65	76,1 mm	130 mm	4 x 14 mm Ø	PN 6	DIN 2631	ST.37.0
DN 80	88,9 mm	150 mm	4 x 18 mm Ø	PN 6	DIN 2631	ST.37.0
DN 100	108 mm	170 mm	4 x 18 mm Ø	PN 6	DIN 2631	ST.37.0
DN 100	114,3 mm	170 mm	4 x 18 mm Ø	PN 6	DIN 2631	ST.37.0
DN 125	133 mm	200 mm	8 x 18 mm Ø	PN 6	DIN 2631	ST.37.0
DN 125	139,7 mm	200 mm	8 x 18 mm Ø	PN 6	DIN 2631	ST.37.0
DN 150	159 mm	225 mm	8 x 18 mm Ø	PN 6	DIN 2631	ST.37.0
DN 150	168,3 mm	225 mm	8 x 18 mm Ø	PN 6	DIN 2631	ST.37.0
DN 200	219,1 mm	280 mm	8 x 18 mm Ø	PN 6	DIN 2631	ST.37.0
DN 250	273 mm	335 mm	12 x 18 mm Ø	PN 6	DIN 2631	ST.37.0
DN 300	323,9 mm	335 mm	12 x 22 mm Ø	PN 6	DIN 2631	ST.37.0
